Top Nutsche Filter Manufacturer in Mumbai, Maharashtra – Advanced Filtration Technology for Solid-Liquid Separation

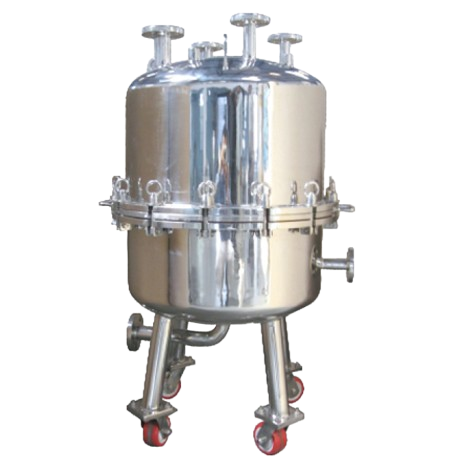

Our Nutsche Filter is an advanced filtration solution designed for solid-liquid separation in industries such as pharmaceutical, chemical, food processing, and wastewater treatment. Engineered for high efficiency, our nutsche filters provide precise filtration with minimal operational costs, ensuring superior separation of solids and liquids.
The Nutsche Filter utilizes a unique vacuum filtration system, which provides high filtration efficiency while minimizing the time and energy required for the separation process. Its compact design and customizable features make it suitable for a wide range of applications, from small batch operations to large-scale industrial processes.
Designed for industrial use, our Nutsche Filter is easy to maintain, durable, and highly reliable. It is also available in various sizes and configurations to meet specific requirements in the pharmaceutical, chemical, food, and wastewater treatment industries, offering maximum performance and minimal downtime.
Working Principle
The slurry mixture is introduced into the Nutsche filter vessel, where it is subjected to filtration under a vacuum or pressure, depending on the application. The liquid phase is drawn through the perforated filter plate, while the solid phase (filter cake) remains on the filter surface. The filter cake is then washed with the appropriate solvent to remove any residual liquid. This process results in a high-purity, clear filtrate and a dry, uniform solid cake, ensuring efficient separation and minimal contamination. The controlled operation ensures consistency and high-quality filtration for demanding applications.
Nutsche Filter Features
Non-Metallic Environment
Ideal for handling acids, salts, and high temperatures, providing excellent performance in demanding filtration applications.
Superior Corrosion Resistance
Designed with corrosion-resistant materials, ensuring long-lasting performance and reliability even in harsh chemical environments.
Mobile Design
Mounted on four legs with castor wheels, enabling easy mobility for better flexibility and movement within the production area.
Easy Cleaning
Features a filter surface that eliminates contamination, ensuring fast and thorough cleaning between batch processes for enhanced operational efficiency.
Capacity Range
Available in a wide capacity range from 100 Ltr to 10 KL, catering to various scale requirements for both small and large-scale operations.
Material of Construction
Built with high-quality materials such as SS316, SS304, and MS, ensuring strength, durability, and compliance with industry standards.
Pressure Rating
Supports pressure ratings from FV to 10 kg/cm², offering flexibility to suit a wide range of filtration applications and processes.
Technical Specifications – Nutsche Filter
| Specification | NF-6 | NF-12 | NF-24 | NF-48 | NF-96 |
|---|---|---|---|---|---|
| Filtration Area | 6 sq. m | 12 sq. m | 24 sq. m | 48 sq. m | 96 sq. m |
| Capacity | 100 Ltr | 200 Ltr | 400 Ltr | 800 Ltr | 1600 Ltr |
| Filter Media | Stainless Steel Mesh | Stainless Steel Mesh | Stainless Steel Mesh | Stainless Steel Mesh | Stainless Steel Mesh |
| Material of Construction | SS316 | SS316 | SS316 | SS316 | SS316 |
| Pressure Rating | From FV to 10 kg/cm² | From FV to 10 kg/cm² | From FV to 10 kg/cm² | From FV to 10 kg/cm² | From FV to 10 kg/cm² |
| Vacuum Rating | Up to 500 mm Hg | Up to 500 mm Hg | Up to 500 mm Hg | Up to 500 mm Hg | Up to 500 mm Hg |
| Volume of Filter Cake | 50 Ltr | 100 Ltr | 200 Ltr | 400 Ltr | 800 Ltr |
| Drive Type | Electric Motor | Electric Motor | Electric Motor | Electric Motor | Electric Motor |
| Operating Voltage | 380V | 380V | 380V | 380V | 380V |
| Dimensions (L x W x H) | 1200 x 1200 x 1600 mm | 1400 x 1400 x 1800 mm | 1600 x 1600 x 2000 mm | 1800 x 1800 x 2200 mm | 2000 x 2000 x 2400 mm |
| Weight | 1200 kg | 1500 kg | 1800 kg | 2200 kg | 2500 kg |
Application of Nutsche Filter
Pharmaceuticals
Used for filtration and washing of pharmaceutical solids and active ingredients in drug production.
Food & Beverage
Used for filtration and separation of solids from liquids in the food and beverage production process, ensuring product purity.
Chemicals
Utilized for solid-liquid separation in chemical processing, especially in hazardous and corrosive environments.
